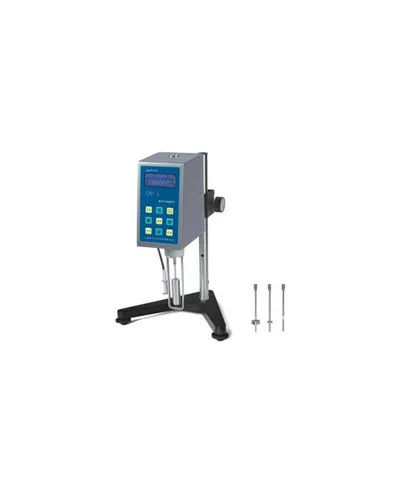

Viscometer - Drawell HBDV-1 60-320000000mPa·s High Viscosity

Category :
Viscometer

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The viscometer is an instrument used to measure the viscosity of a fluid. Viscosity is the physical quantity that indicates the internal friction of the fluid when it flows. It is the ability of the fluid to resist deformation. It is an important index to identify some finished products or semi-finished products.

Spesifikasi:
Model: HBDV-1
Measuring Range（mPa·s）: 640～320,000,000
Rotating Speed (RPM): 0.1 ～ 99.9 （Stepless Gear）
Number of Spindles: Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product
Accuracy: ±1% full scale range in use
Repeatability: ±0.5% full scale range in use
Readability:
1.when viscosity is lower than 10.0 cp : 0.01
2.when viscosity is lower than 10000 cp: 0.1
3.when viscosity is equal or higher than 10000 cp: 1
Power: Power adapter ( Input: 100-240V，50/60Hz)
LCD screen display: The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.
