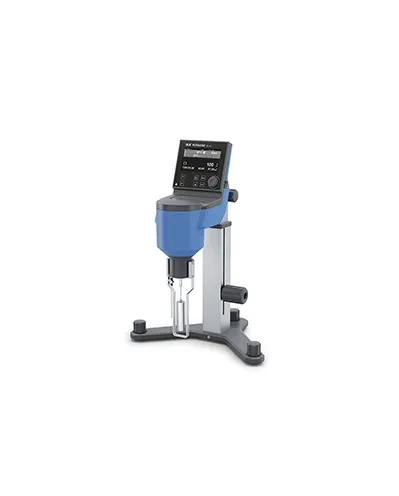

Viscometer – IKA ROTAVISC Me-Vi Complete

Category :
Viscometer

Price :

Rp.99.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP7- SP12), a protective bracket, temperature sensor, quick connector, hook connector and ROTASTAND stand

Ident. No : 0025000311
Viscosity Measuring Range : 40,000,000 mPas
Viscosity Accuracy (FSR) : 1 %
Viscosity Repeatibility (FSR) : 0.2 %
Spring torque : 0.7187 mNm
Guard rail : me-vi
Measuring spindle series : SP set-2
Motor rating output : 4.8 W
Overload protection : yes
Direction of rotation : right
Display : TFT
Speed display : TFT
Speed range : 0.01 - 200 rpm
Setting accuracy speed : 0.01 ±rpm
Speed control : TFT
Torque display : yes
Torque measurement : trend
Timer : yes
Timer display : TFT
Time setting range : 0.017 - 6000 min
Temperature measurement resolution : 0.1 K
Working temperature display : TFT
Connection for ext. temperature sensor : PT 100
Graph function : yes
Operating mode : timer and continuous operation
Calibration option : yes
Touch function : yes
Pemitted density : 9999 kg/dm3
Working temperature : -100 - 300 °C
Fastening on stand : extension arm
Support rod diameter (with integrated fastening on stand) : 16 mm
Telescope stand stroke : 200 mm
Plug-in coupling (Ø) : 12 mm
Basic container volume : 600 ml
Stand : Rotastand
Stroke max. : 200 mm
Diameter : 16 mm
Dynamic load : 5 kg
Permissible ambient temperature : 0 - 40 °C
Permissible relative humidity : 80 %
Protection class according to DIN EN 60529 : IP 40
RS 232 interface : yes
USB interface : yes
Voltage : 100 - 240 V
Frequency : 50/60 Hz
Power input : 24 W
Power input standby : 0.06 W
DC Voltage : 24 V=
Current consumption : 1000 mA
Dimensions (W x H x D) : 351 x 629 x 372 mm
Weight : 7.1 kg
