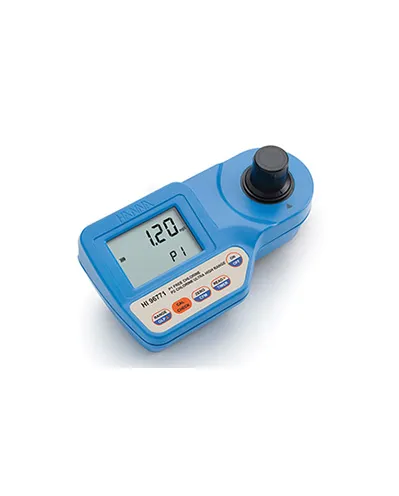

The HI96771 Ultra High Range Chlorine Portable Photometer combines accuracy and ease of use in an ergonomic, portable design. A user can accurately determine the concentration of chlorine over two ranges. The HI96771 has a 0.00 to 5.00 mg/L (ppm) free chlorine low range and a high range mode that measures chlorine up to 500 mg/L (ppm). The HI93701-0 reagents are used for the low range free chlorine measurement while the HI95771-0 are used for high range chlorine measurements. The HI96771 offers many advanced features including the exclusive CAL Check™ function used for performance verification and calibration of the meter.
Light source : tungsten lamp Light detector : silicon photocell with narrow band interference filter @ 525 nm
Range : Free Chlorine (P1): 0.00 to 5.00 mg/L (ppm); Ultra High Range Chlorine (P2): 0 to 500 mg/L (ppm); Resolution : Free Chlorine (P1): 0.01 mg/L from 0.00 to 3.50 mg/L; 0.10 mg/L above 3.50 mg/L; Ultra High Range Chlorine (P2): 1 mg/L from 0 to 200 mg/L; 10 mg/L above 200 mg/L Accuracy @ 25°C (77°F) : Free Chlorine (P1): ±0.03 mg/L ±3% of reading; Ultra High Range Chlorine (P2): ±3 mg/L ±3% of reading Method : adaptation of the Standard Methods for the Examination of Water and Wastewater, 4500-Cl method Auto-off : after ten minutes of non-use in measurement mode; after one hour of non-use in calibration mode; with last reading reminder Environment : 0 to 50°C (32 to 122°F); RH max 95% non-condensing Weight : 360g (12.7oz.) Battery type : 9V battery Dimensions : 193 x 104 x 69 mm (7.6 x 4.1 x 2.7”)
