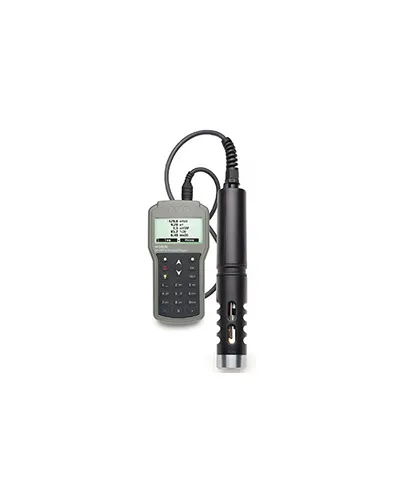

The Hi98196 is a waterproof portable logging multiparameter meter that monitors up to 7 different water quality parameters including 5 measured and 2 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, dissolved oxygen, and temperature. The probe transmits readings digitally to the meter, where data points can be displayed and logged. The use of digital communication allows for noise free transfer of data for up to 100 meters in cable length. The complete system is simple to setup and easy to use
pH Range : 0.00 to 14.00 pH pH Resolution : 0.01 pH pH Accuracy (@25°C/77°F) : ± 0.02 pH pH Calibration : automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer mV Range : ± 600.0 mV mV Resolution : 0.1 mV mV Accuracy : ± 0.5 mV ORP Range : ± 2000.0 mV ORP Resolution : 0.1 mV ORP Accuracy (@25°C/77°F) : ± 1.0 mV ORP Calibration : automatic at one custom point (relative mV) Temperature Range : -5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K Temperature Resolution : 0.01 °C; 0.01 °F; 0.01 K Temperature Accuracy (@25°C/77°F) : ± 0.15 °C; ± 0.27 °F; ±0.15 K Temperature Calibration : automatic at one custom point Do Range : 0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L) DO Resolution : 0.1%; 0.01 ppm (mg/L) DO Accuracy (@25°C/77°F) : 0.0 to 300.0% saturation: ±1.5% of reading or ±1.0% saturation whichever is greater, 0.00 to 30.00 ppm (mg/L): ±1.5% of reading or ±0.10 ppm (mg/L), whichever is greater, 30.00 ppm (mg/L) to 50.00 ppm (mg/L): ±3% of reading, 300.0 to 500.0% saturation: ±3% of reading DO Calibration : automatic one or two point at 100% saturation (8.26 mg/L) and 0% saturation (0 mg/L). Temperature Compensation : automatic from -5 to 55 °C (23 to 131 °F) Connectivity : USB to PC with HI9298194 Hanna software installed GLP : Yes Power Supply : 1.5V AA batteries (4) Power Consumption : approximately 360 hours of continuous use without backlight (50 hours with backlight) Environment : 0 to 50°C (32 to 122°F); RH 100% (IP67) Dimensions : 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”) Weight : 400 g (14.2 oz.)
Water quality analysis is repeatedly performed in laboratories on a daily basis. Our compact and powerful benchtop model was developed to provide simplicity with excellent on-site usability.
